Description
Description

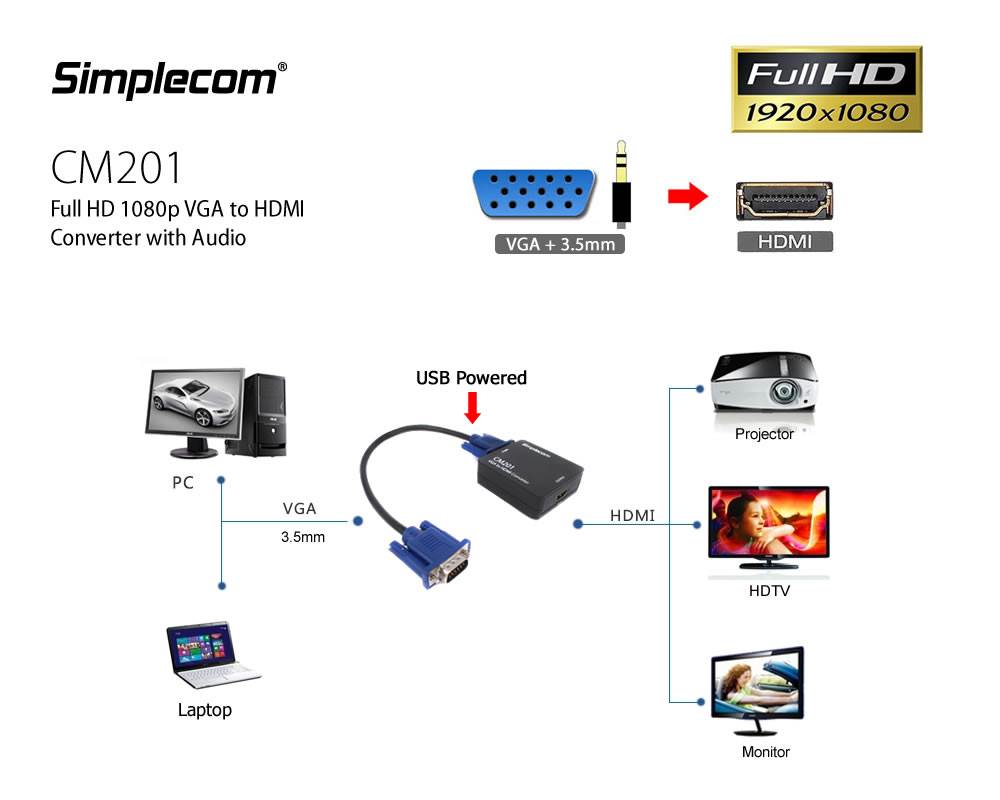

Simplecom CM201 VGA to HDMI Converter allows you to convert analog VGA signals to digital HDMI signals. The converter will take audio from the 3.5mm audio input and powered by USB, making it ideal for connecting PCs and laptops to HDMI displays such as HDTVs.
Features
- VGA to HDMI adapter offers you a convenient way to connect PCs, Laptops with VGA to displays such as Projectors, Monitors, and HDTVs with HDMI
- The converter will take audio from the 3.5mm audio input
- Powered by USB, plug into either a USB wall adapter or a nearby USB port on PC or TV
- Support HDMI digital output with resolutions up to 1080p
- Simple installation, plug & play
- Compatible with HDMI version 1.3
Specifications
- Supports VGA Resolution
- 640×480@60Hz,800×600@60Hz,1024×768@60Hz,1280×720@60Hz,1280×769@60Hz,1280×800@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1600×1200@60Hz,1920×1080@60Hz
- Output ports: HDMI support: 480P, 720P, 1080P@60Hz
- 1x 15 Pin VGA Female Socket (Cable Included)
- 1x 3.5mm Stereo Audio Female Socket (Cable Included)
- 1x Mini USB port for power (Cable Included)
- 1x HDMI Female Socket (HDMI Cable Not Included)
Important Note
- This converter is NOT bi-directional. It only converts from VGA to HDMI
- For laptop users, you must shift between the normal display and the one connected to VGA port. Please click the Fn+Screen Switch Key (Refer to notebook’s User Manual for different Screen Switch Key)
Package Contents
- 1x CM201 VGA to HDMI converter
- 1x USB Power cable
- 1x Short VGA Male to Male Cable
- 1x 3.5mm Stereo Audio Cable
