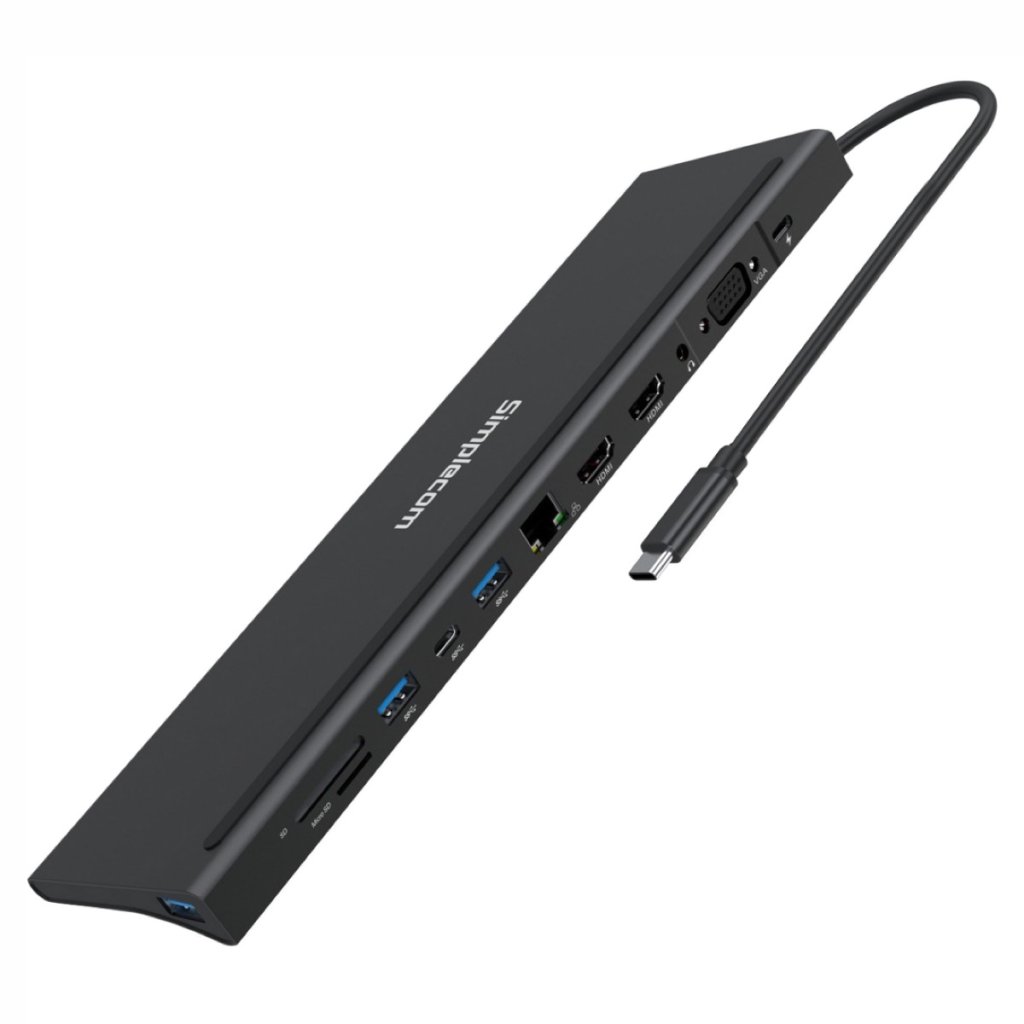

Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station CHN613 is a comprehensive 13-port multifunctional USB-C docking station that allows you to expand the connectivity of your laptop through a single USB-C connection. It turns a single USB-C port into 13 ports, including four USB-A and one USB-C data ports, two card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5" audio jack and 100W PD charging. If you need to connect with various devices to your laptop simultaneously, CHN613 is an ideal connectivity solution that helps you do more with the devices you already have to increase productivity and convenience.

• 13-in-1 USB-C multiport adapter for comprehensive expansion to your laptop
• USB ports support up to 10Gbps transfer rate following USB 3.2 Gen 2 standard
• Dual HDMI plus VGA, triple video outputs with MST Support
• Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
• Support Mirror or Extended mode (maximum 2 extended mode displays)
• Gigabit Ethernet support connection speeds of up to 1000Mbps
• 2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
• USB-C PD port for charging the laptop with up to 100W of power
• 3.5mm audio jack for easy connection of headphones or speakers
• Durable & stylish aluminium alloy housing
• Lightweight, easy to carry along when travelling
• Plug & play, no driver software required

SPECIFICATIONS:

USB Hub	4x USB-A Female (2x 5Gbps, 2x 10Gbps), 1x USB-C Female (10Gbps)
Video Output	2x HDMI, VGA
HDMI Resolution	Single HDMI output supports up to 4K@30Hz, dual HDMI outputs support up to 1920x1080@60Hz on each external monitor
VGA Resolution	Up to 1080p@60Hz
MST Support	Yes (for Windows System only)
RJ45 Port	Gigabit Ethernet (10/100/1000 Mbps)
Card Reader	SD and MicroSD (SuperSpeed 5Gbps)
PD Charging	USB-C Female (for charging only), up to 100W
3.5" Audio Jack	Yes (Audio output only)
Operation Temperature	0 - 45°C
Housing	Aluminium Alloy
Dimensions	13.5 x 5.5 x 1.6 (cm)
Cable Length	15cm
System Requirements	Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support Windows 8 or above for MST and two extended screens support Thunderbolt USB-C port, USB3.2 Gen2 or USB4 port for 10Gbps data transfer rate macOS does not support MST and will only support one extended mode
Notes	Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function Screen resolution will be limited to 1080p when two HDMI monitors are connected Screen resolution will be limited to 1080p when VGA port is connected The USB-C PD port is for PD Charging only, not for data transfer, please use another USB-C port for data transfer Please connect power delivery adapter when power is not enough
