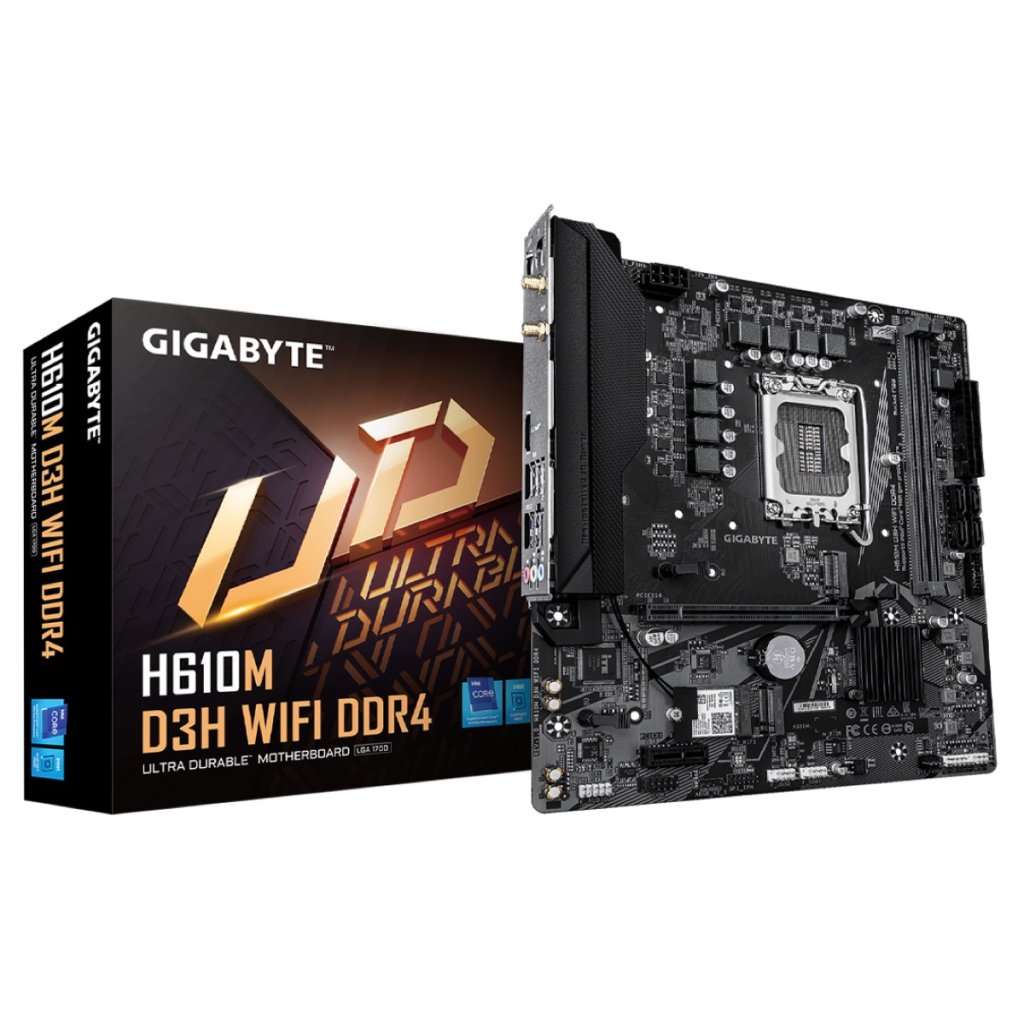

Gigabyte H610M D3H WIFI DDR4 Intel LGA1700 Micro ATX Motherboard
Feature
Low on stock
$ 109.00
PurchaseDetails
Specifications
Form Factor
Micro ATX
Socket
Intel 1700 12Gen
Memory Type
DDR4
Memory Slots
2
Chipset
Intel H810
Wifi/Bluetooth
YES
Volume
Length
31.00cm
Width
28.00cm
Height
7.00cm
Weight
1.30kg
Description
FeaturesH610M D3H WIFI DDR4Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, Wi-Fi 802.11ac, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6.
* Actual support may vary by CPU. Overview
Power6+1+1 Phases Hybrid Power Design Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
PerformancePCIe 4.0 Design Slot Signal Stability*
*Based on PCIe 4.0 differential impedance specification Single 32GB Support The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Smart Fan 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Headers & Sensors
Cooling Features High Current Support Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection. Precision Control Up to 7 temperature/fan speed control points for precise fan curve. Dual Curve Mode Slope/Stair dual mode for different user scenario. Fan Stop Fan can stop completely below users' specified temperature point. Smart Fan 6 BIOS UI Improve Fan Curve UI We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control. Slope/Stair Dual Graph Mode Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval. Manual Input For advanced users, fan speed manual input control is provided. EZ Tuning Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve. Fan Curve Profile Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. Fan Stop Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customised to your liking. Hybrid Cores Optimisation With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy. Gaming
Max Performance
Connectivity
802.11ac Wi-Fi The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above. * Photo for reference only.
GbE LAN with Bandwidth Management GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 3.0 M.2 Slot - NVMe PCIe Gen3 x4 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their system's potential.
Hi-Fi Audio High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. * Photo for reference only. Ultra Durable
Solid Pin Solid Pin Power Connectors H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. Solid Pin Power Connector Advantages
* Photo for reference only. Anti-Sulfur Start Sulfurization Protection Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. Software Gigabyte Control Center (GCC) GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
|
